Description
A HEATER BEHIND THE BENCHES

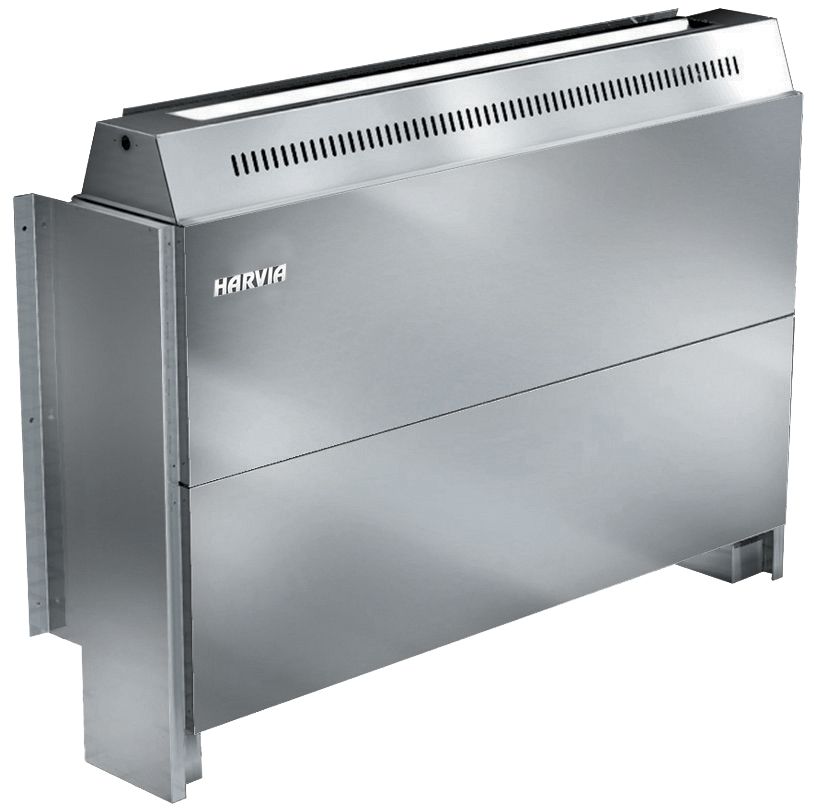

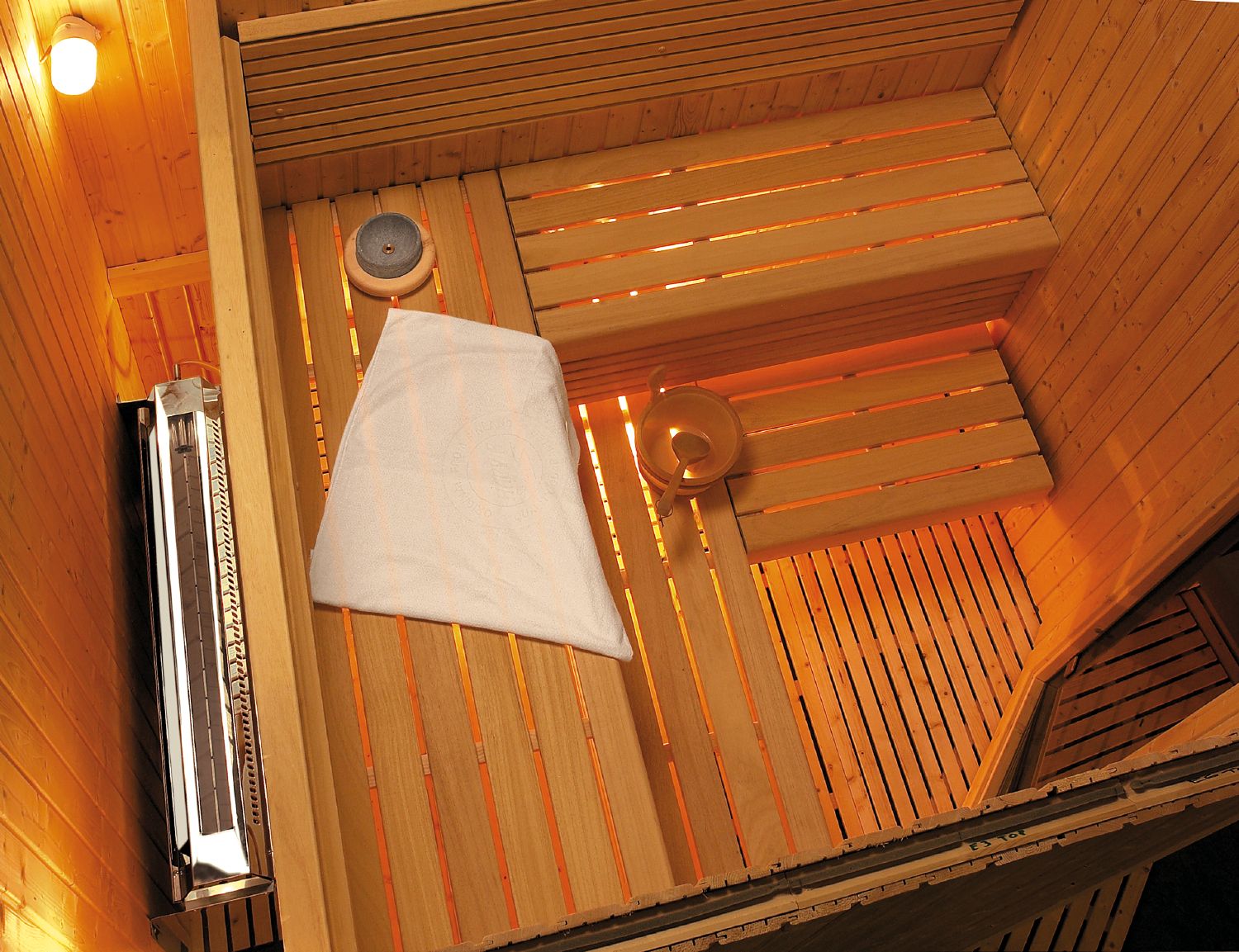

Harvia Hidden Heater is a practical heater requiring very little space. It is mounted behind the benches and is therefore very well-suited for community saunas.
For more information please read manual. Harvia Hidden Heater manual.
–
Check the heater size here: Sauna Calculator
–
Warranty
Domestic: 2 years
Excluding heating elements
Commercial: 6 months
| Model | HH090400 | HH120400 |
| User Group | Professionals | Professionals |
| Control type | Controlled by a separate control unit | Controlled by a separate control unit |
| Color | Steel | Steel |
| Output kW | 9.0 | 12.0 |
| Weight kg | 33 | 33 |
| Dimensions depth mm | 255 | 255 |
| Dimensions width mm | 1180 | 1180 |
| Dimensions height mm | 830 | 830 |
| Sauna room min. m3 | 10 | 12 |
| Sauna room max. m3 | 14 | 17 |
| Sauna min. height | 2000 mm | 2000 mm |
| Stone capacity kg, 5-10cm size | 15 | 15 |
| Safety distance front, mm | 90 | 120 |
| Safety distance side, mm | 80 | 100 |
| Supply voltage 3-phase | 400 3N~ | 400 3N~ |
| Connecting cable mm2 | 5 x 2,5 | 5 x 2,5 |
| Fuse A | 3 x 16A | 3 x 25A |
